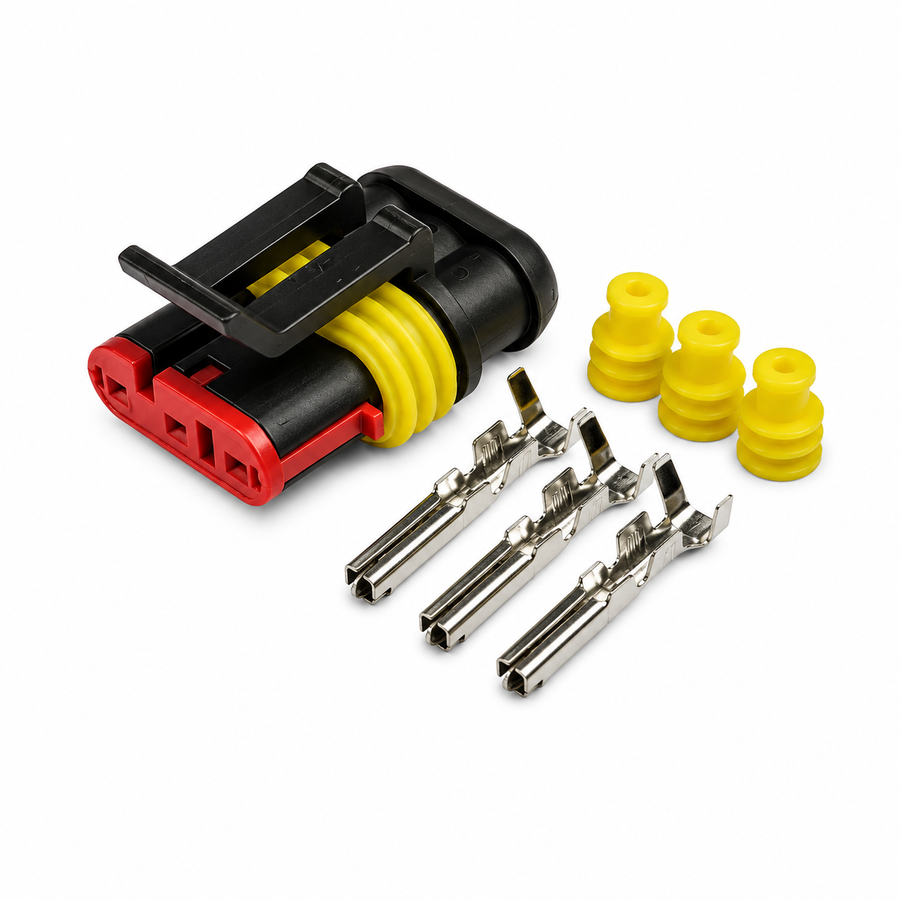

3 Way Female Superseal Connector

This 3 way female Superseal connector is a waterproof housing for joints that have to keep moisture out, mainly on automotive and marine wiring. It takes cable from 0.5mm² to 1.5mm².

Each pack contains the housing, a rubber seal and a terminal. The yellow seal is ribbed silicone rubber and fits around the cable where it enters the housing. It is used with both male and female Superseal housings and suits cable with an insulation diameter of 1.7 - 2.4mm, which is equivalent to 0.5 - 1.5mm² thin wall cable. The terminal is designed for use with Superseal waterproof connectors.

• Contents: x1 3 way waterproof connector housing, x1 rubber seal, x1 terminal
• Housing: provides a waterproof joint within the Superseal range
• Applications: automotive and marine
• Cable size: 0.5mm² to 1.5mm²
• Seal material: ribbed silicone rubber
• Seal colour: yellow
• Seal fit: cable insulation diameter 1.7 - 2.4mm (equivalent to 0.5 - 1.5mm² thin wall cable)
