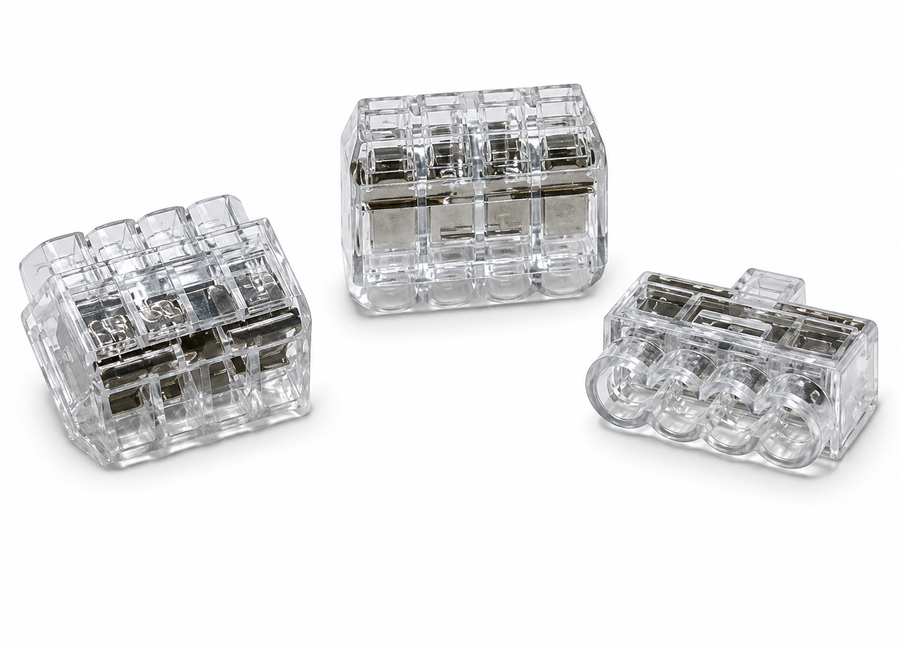

4 Hole HelaCon Plus Mini Connectors (Pack 100)

These 4-hole push-in connectors join and distribute conductors in electrical installations without tools. Push each conductor into its entry and the double spring holds it, which saves time on the job.

The HelaCon Plus Mini is roughly 40% smaller than earlier HelaCon connectors, so it fits more easily into crowded back boxes and enclosures. The clear housing lets you see that each conductor is fully inserted. A built-in voltage test entry lets you test safely during installation and later maintenance. The connectors are approved for solid and stranded conductors, and each entry can take a different conductor diameter. Colour coding shows the size at a glance. Supplied in a pack of 100.

• Type: HelaCon Plus Mini wire connectors
• Configuration: 4 hole
• Connection: Tool-free push-in, low insertion force
• Spring: Double spring mechanism
• Conductors: Solid and stranded; different diameters accepted in each entry
• Housing: Transparent, so you can check conductor insertion
• Size: Approximately 40% smaller than previous HelaCon connectors
• Testing: Integrated voltage test entry
• Identification: Colour coded by size
• Pack quantity: 100
