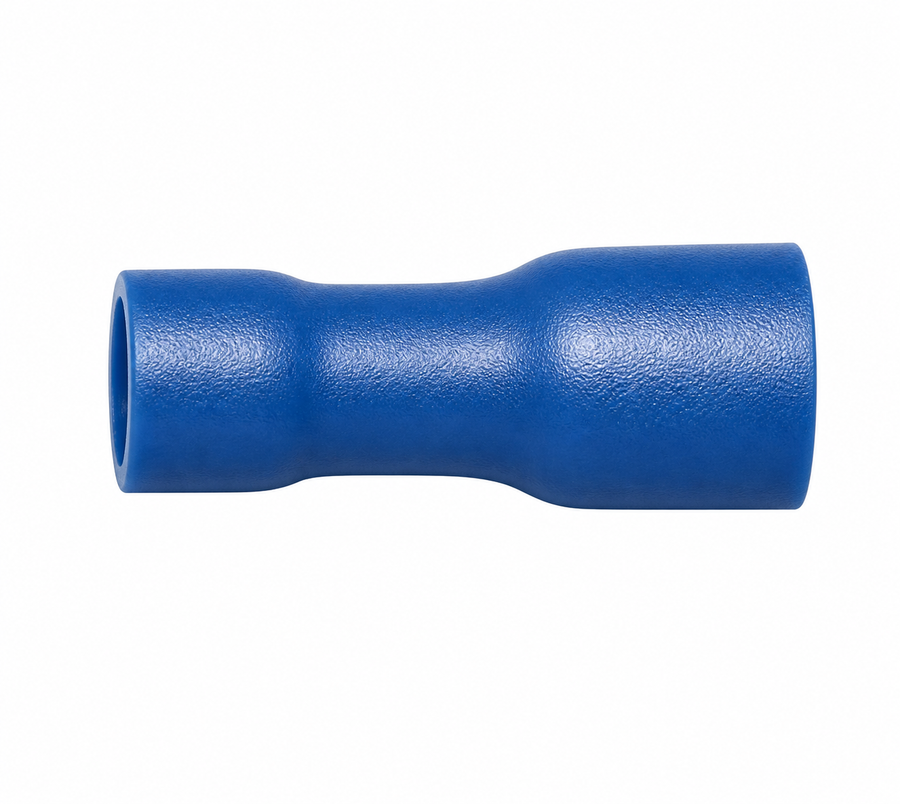

Blue Fully Insulated Female Spade Disconnect Terminals (Pack of 100) Long

These blue fully insulated female spade terminals make quick-disconnect crimp connections on 1.5–2.5mm² cable. They have a long barrel and are sold in packs of 100, in a choice of three tab sizes: 0.5 x 4.75mm, 0.8 x 4.75mm and 0.8 x 6.35mm.

The conductor is tin-plated brass, which gives good conductivity and resists corrosion. It sits inside a copper tubular sleeve with vinyl insulation for protection. The barrel is flared, so wire goes in easily with little force and crimps cleanly. The long internal copper sleeve (L suffix) gives the cable extra support and makes the connection stronger.

• Pack quantity: 100
• Tab sizes: 0.5 x 4.75mm, 0.8 x 4.75mm, 0.8 x 6.35mm
• Wire range: 1.5–2.5mm²
• Maximum voltage: 300V
• Maximum current: 15A (blue)
• Operating temperature: -10°C to +75°C
• Conductor: Brass
• Plating: Tin
• Sleeve: Copper tubular, long internal (L suffix) for extra cable support
• Insulation: Vinyl
• Flared barrel for easy wire entry
• Low insertion force
• Easy to crimp, giving a secure termination
