Blue Piggy-back terminals (Pack of 100)

Blue insulated piggy-back terminals are crimp-on quick disconnects. Each one is a female receptacle with a built-in male tab, so you can run two connections from a single point. They are suited to automotive and general electrical work and come in packs of 100.

Two tab size options are available: 6.3mm and 6.3mm - Long. The long version has a long internal copper sleeve, shown by the L suffix in the part code.

• Colour: Blue, rated 15A
• Tab size: 6.3mm or 6.3mm - Long
• Materials: Brass conductor, copper tubular sleeve, vinyl insulation, tin plated
• Connection: Crimp
• Operating temperature: -10°C to +75°C
• Voltage rating: 300V max.

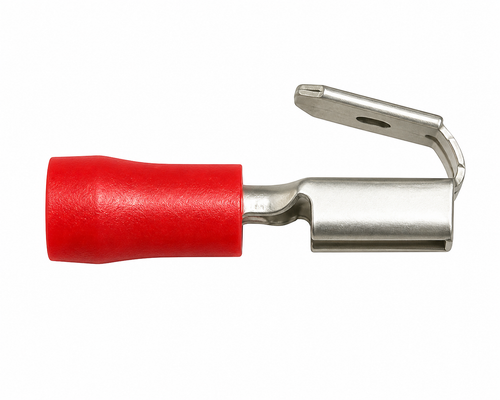

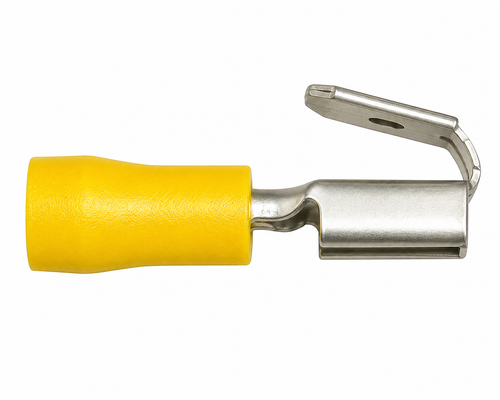

• Current rating by colour: Red 10A / Blue 15A / Yellow 24A
• Pack quantity: 100
