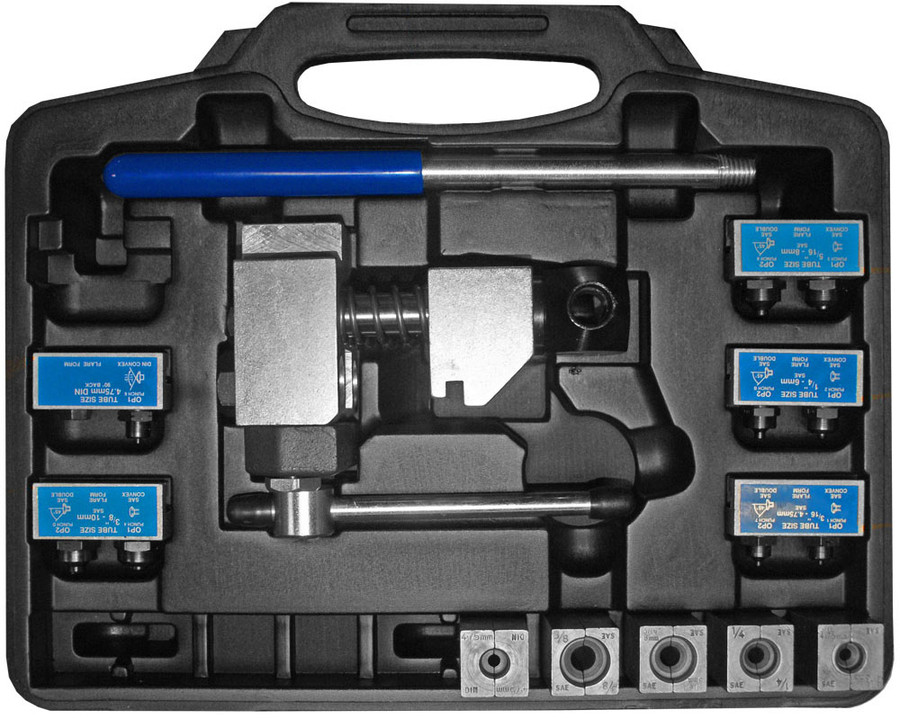

Brake Pipe Flaring Tool

This bench-mounted flaring tool forms SAE flares on soft copper, cupro nickel and steel brake pipes. It produces SAE flares only. SAE is commonly known as a double flare, while DIN is a single flare.

You can fit the tool in a standard bench vice or on its own purpose-built base plate. The brake pipe sits in split dies, which are held by an overhead locking screw on a swing clamp. Place the mandrill in its retainer, then use the cam lever to move it into the flaring position by hand.

You may need extra punch-and-die sets for other pipe sizes. For example, 6mm pipe needs BPF9 and 8mm pipe needs BPF10.

• Flare type: SAE (double flare) only
• Suitable pipe materials: soft copper, cupro nickel and steel
• Punch and die sets included: 4.75mm, 3/16", 1/4", 5/16" and 3/8"
• Mounting: conventional bench vice or the dedicated base plate
• Pipe clamping: split dies held by an overhead locking screw on a swing clamp
• Operation: manual cam lever moves the mandrill into the flaring position
