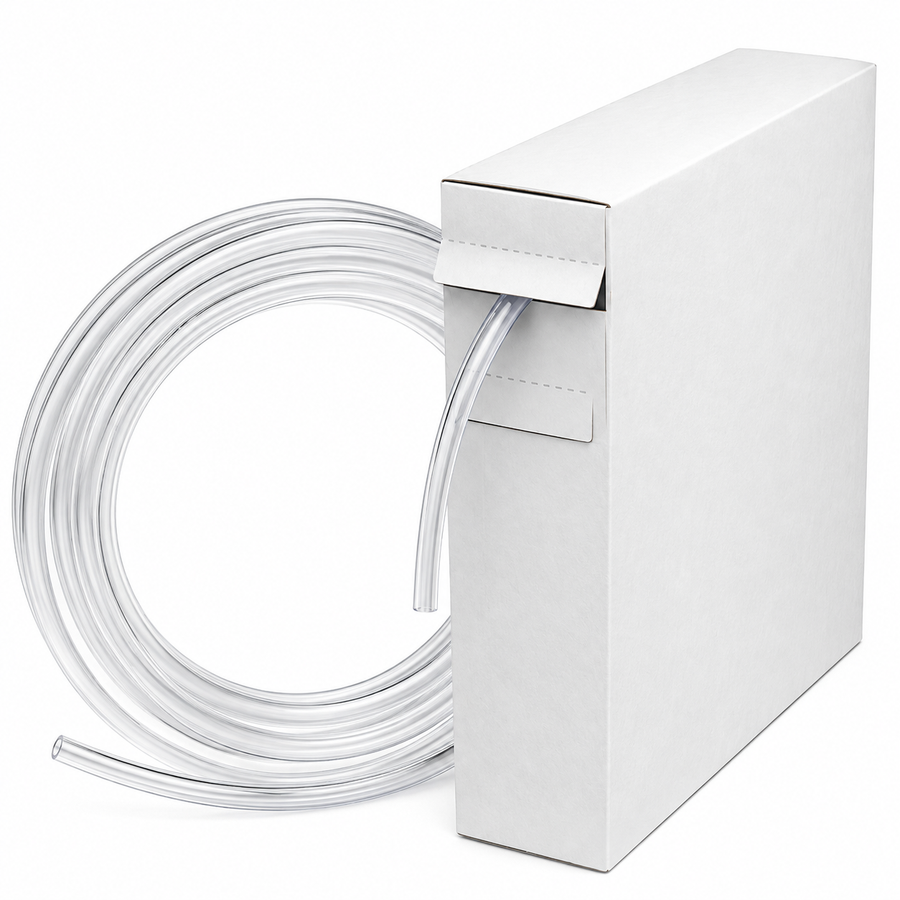

Clear 2:1 Heat Shrink Tubing - Mini Reel Box

Clear 2:1 heat shrink tubing in polyolefin, supplied on a mini reel in a box. It is standard wall tubing for insulating electrical joints, bundling cables, and protecting wires, pipes and other components.

When heated, the tubing shrinks to roughly half its supplied internal diameter. It has good electrical and physical properties, high dielectric strength and very good resistance to chemicals and solvents. It is flame retardant and stands up to fuel, hydraulic fluid and lubricating oil, so it suits automotive, electrical and industrial wiring. It works across an operating range of -55°C to +125°C.

• Type: Standard wall heat shrink tubing
• Colour: Clear
• Material: Polyolefin
• Pack quantity: 1 coil
• Shrink ratio: 2:1
• Shrink temperature: 80°C
• Operating temperature: -55°C to +125°C
• Properties: Flame retardant, flexible, high dielectric strength
• Chemical resistance: Fuel, hydraulic fluid and lubricating oil
• Uses: Electrical insulation, cable bundling, physical protection of pipes and wires

Sizes available (supplied internal diameter, coil length, recovered diameter):

• 1.2mm: 12m coil, recovers to 0.6mm
• 1.6mm: 12m coil, recovers to 0.8mm
• 2.4mm: 11m coil, recovers to 1.2mm
• 3.2mm: 11m coil, recovers to 1.6mm
• 4.8mm: 10m coil, recovers to 2.4mm
• 6.4mm: 9m coil, recovers to 3.2mm
• 9.5mm: 7m coil, recovers to 4.8mm
• 12.7mm: 6m coil, recovers to 6.4mm
• 19.1mm: 5m coil, recovers to 9.5mm
• 25.4mm: 3.5m coil, recovers to 12.7mm
